Description

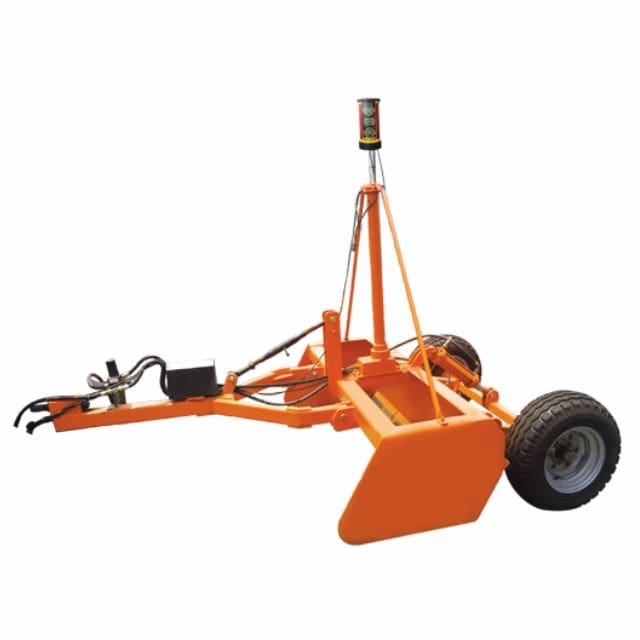

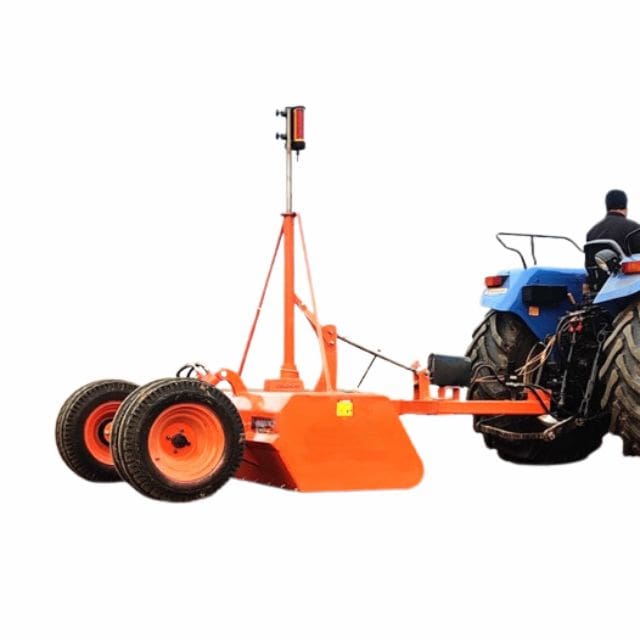

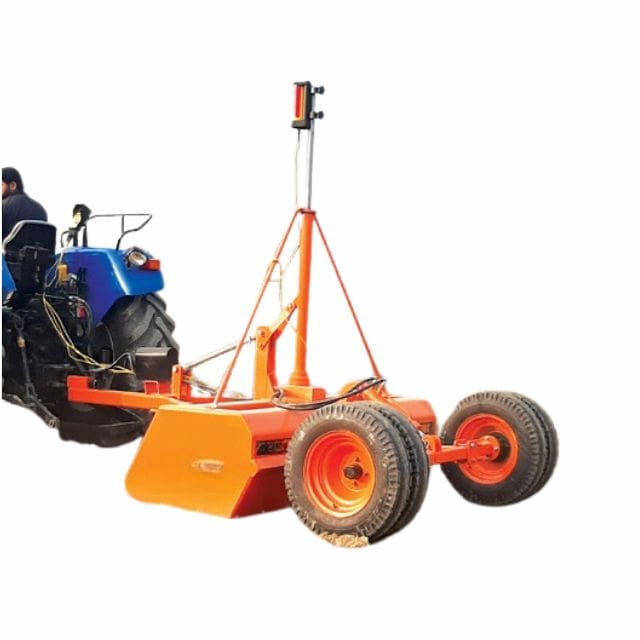

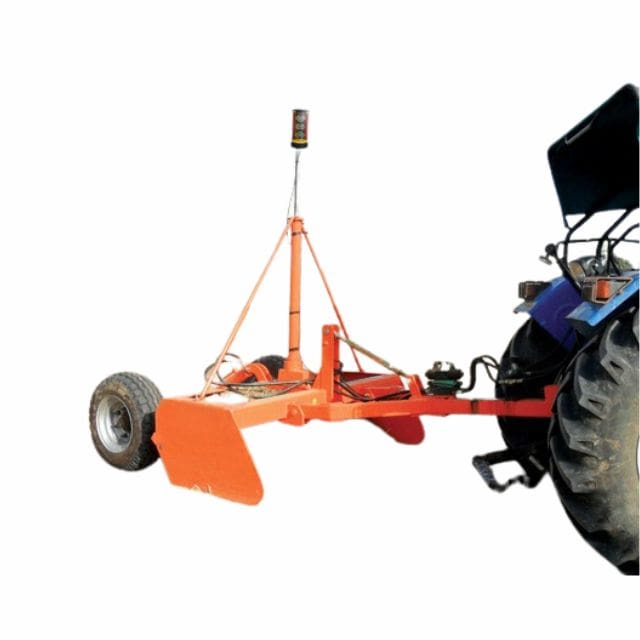

LASER LAND LEVELER

Features:-

Minimizes the cost of operation, Ensures a better degree of accuracy in much lesser time. Saves irrigation water. Ascertains uniform seed germination. Increases fertilizer effectiveness and resultantly enhances crop yield.



Salient Features:-

• Backed by MFI Guarantee.
• Range: Diameter 1 Km (Approx).
• Reliable Fully Automatic Transmitter.
• Durable, Shock Proof Big Screen Receiver.
• Control Box with Manual of Automatic Settings.
• Provision of Slope.
• Heat Resistance & Water Proof.

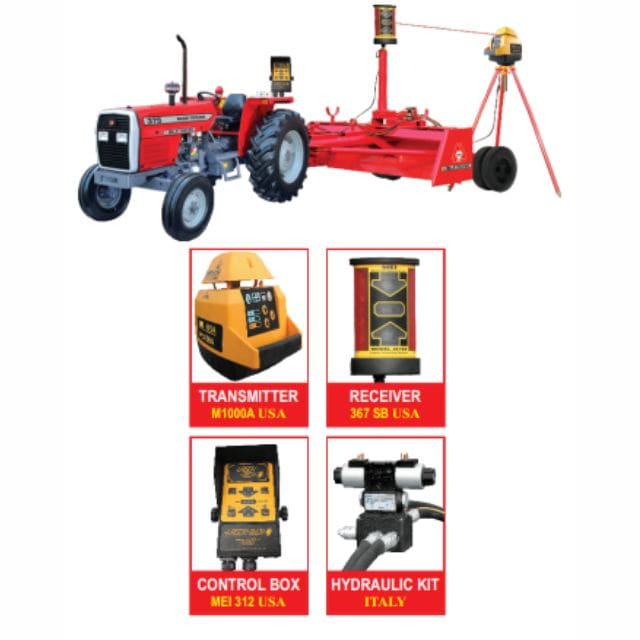

Material Specifications

TRANSMITTER (MEI – USA; Model: M1000A)

Heat Resistant (up to 60 C) and Water Proof

Tripod Mounting System

Working Area Diameter:1000m/1 Km (Approx.)

Provision of Slope 1 mm to 10 ft.

Accuracy (+,-) 1.5 mm

Self-Leveling Range Horizontal (+,-) 5

Rotating Speed 600 – 1200 rpm

Operating Time With a battery of 65 hrs With dry cells 25 hrs

CONTROL BOX ( MEI – USA; Model: MEI 312)

Heat & Water Resistant

Fully Automatic Blade Control for Precision Grading

Manual or Automatic Control

On Grade Accuracy Selection

Operating Temperature -15 °C to 60 °C

Operating Voltage 12V DC

Weight 1.5 Kg

RECEIVER (MEI – USA; Model: 367 SB)

Extremely Durable: Internally Protected from Shock & Vibration

Beam Detecting Angle 360

Height 7.8 (200 mm)

Water Resistant & Dust Proof

Super Bright LED Display

Two Intensities (1) Super Bright for high ambient light levels. (2) Softer for Low light.

Power Source 12/24 V DC

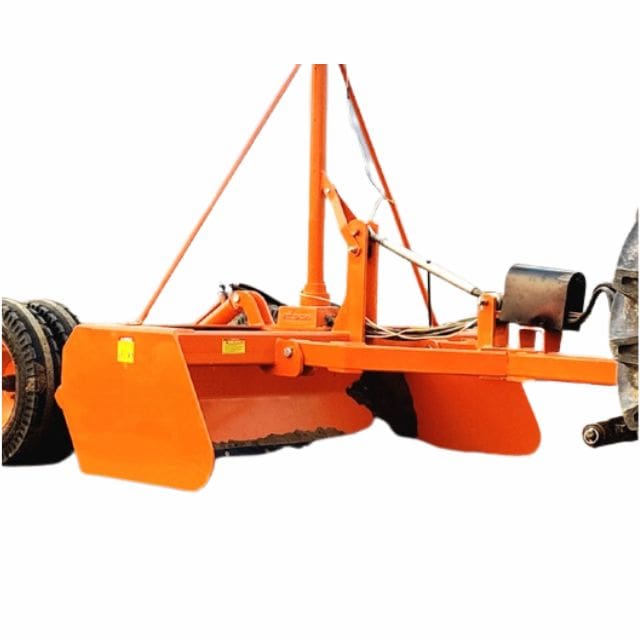

LASER SCRAPPER

Dimensions

Overall Length 4,400 mm (14.4ft)

Overall Width 2,570 mm (8.4ft)

Overall Height 2,000 mm (6.5ft)

Approx. Weight 1,000 Kg

Tires 04 Nos.

Size 6.50 – 14 (6PR)

HYDRAULIC KIT

(Aron – Made in Italy)

COMPATIBLE TRACTORS

MF 375 (75 HP) and MF 385 (85 HP)
